Indoor vs Outdoor Electrical Wire Cable: Insulation and Jacket Type Differences Explained

 Choosing the right Electrical Wire Cable is about more than selecting the correct conductor size or voltage rating. The installation environment plays a critical role in determining which cable will deliver safe, reliable, and long-lasting performance. Indoor and outdoor electrical wire cables are designed with different insulation and jacket materials to withstand specific environmental conditions.

Understanding these differences helps contractors, engineers, and purchasing managers select the most suitable cable for residential, commercial, and industrial projects. As a trusted manufacturer, Biaobang provides high-quality electrical wire and cable solutions engineered for both indoor and outdoor applications while meeting international quality standards.

Why Environment Matters for Electrical Wire Cable

Every Electrical Wire Cable is exposed to different operating conditions throughout its service life. Factors such as sunlight, moisture, chemicals, temperature fluctuations, and mechanical stress can significantly affect cable performance.

Using an indoor cable outdoors—or vice versa—can lead to:

· Premature insulation failure

· Increased maintenance costs

· Electrical faults

· Reduced service life

· Safety hazards

· Non-compliance with electrical codes

Selecting the proper cable ensures long-term reliability and minimizes operational risks.

d743560e9f81e86950998a0c0bb42443.jpg​

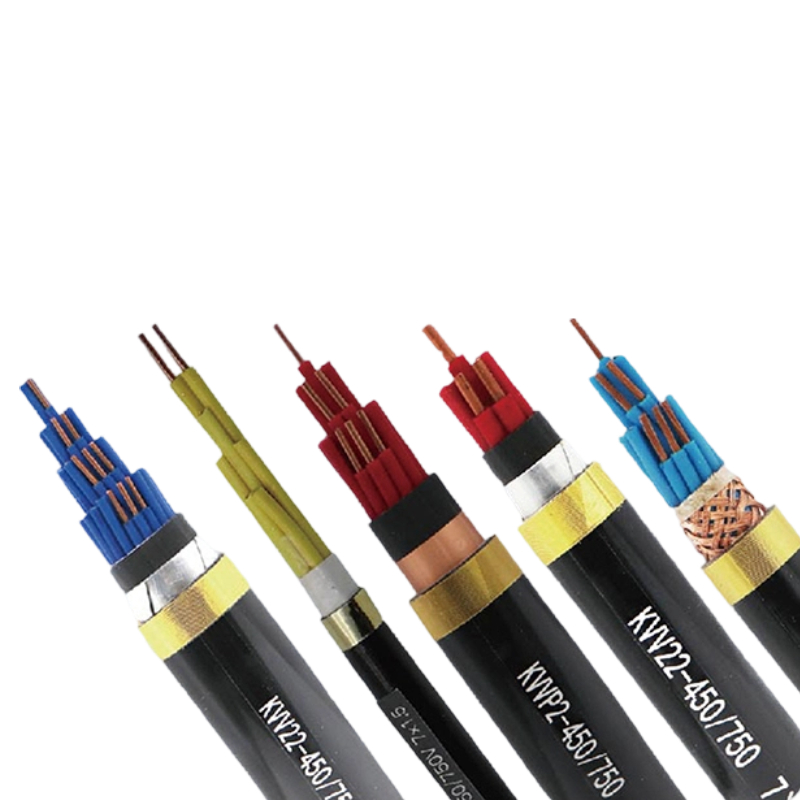

Understanding Cable Construction

An Electrical Wire Cable typically consists of several protective layers, each serving a specific purpose.

Conductor

The conductor carries electrical current and is usually made from:

· Copper

· Aluminum

Insulation

The insulation surrounds the conductor and prevents electrical leakage while protecting users from electric shock.

Outer Jacket

The cable jacket protects the insulation from environmental damage, including:

· Moisture

· UV radiation

· Chemicals

· Abrasion

· Oil

· Mechanical impact

The insulation and jacket materials are the primary differences between indoor and outdoor cables.

Indoor Electrical Wire Cable

Indoor cables are specifically designed for protected environments where exposure to harsh weather is minimal.

Typical Insulation Materials

Common insulation materials include:

PVC (Polyvinyl Chloride)

PVC remains one of the most widely used insulation materials because it offers:

· Good electrical insulation

· Flame resistance

· Affordable cost

· Easy installation

PVC-insulated cables are suitable for residential and commercial buildings.

XLPE (Cross-Linked Polyethylene)

XLPE insulation provides:

· Higher temperature resistance

· Better electrical performance

· Improved durability

· Longer service life

It is commonly used in industrial facilities and higher-performance applications.

Indoor Jacket Characteristics

Indoor cable jackets are primarily designed for:

· Fire resistance

· Flexibility

· Easy routing through walls and conduits

· Mechanical protection

Since indoor cables are not normally exposed to direct sunlight or heavy moisture, their jackets typically do not require advanced weather-resistant properties.

Outdoor Electrical Wire Cable

Outdoor cables must withstand much harsher operating environments throughout their service life.

UV Resistance

Continuous sunlight exposure can rapidly degrade standard insulation materials.

Outdoor Electrical Wire Cable products use UV-resistant jackets that maintain flexibility and strength even after years of exposure.

Water Resistance

Outdoor installations often encounter:

· Rain

· Snow

· Underground moisture

· Condensation

Special jacket materials prevent water penetration that could damage insulation or conductors.

Temperature Resistance

Outdoor cables must perform reliably in both high and low temperatures.

Quality outdoor jackets resist:

· Heat aging

· Cold cracking

· Thermal expansion

· Temperature cycling

Mechanical Protection

Outdoor installations frequently experience greater physical stress.

Heavy-duty jackets provide resistance against:

· Abrasion

· Crushing

· Rodent damage

· Impact

· Installation stress

Common Insulation Materials for Outdoor Cables

XLPE

XLPE is widely used because it offers:

· Excellent moisture resistance

· High operating temperatures

· Strong electrical insulation

· Long service life

PE (Polyethylene)

Polyethylene provides outstanding:

· Water resistance

· UV stability

· Chemical resistance

It is commonly used in underground and utility distribution cables.

Rubber-Based Insulation

Rubber insulation delivers exceptional flexibility for portable outdoor equipment and construction sites.

Benefits include:

· Flexibility in cold weather

· Mechanical durability

· Excellent weather resistance

Indoor vs Outdoor Cable: Key Differences

Environmental Resistance

Indoor cables are intended for controlled environments, while outdoor cables are engineered to withstand:

· Sunlight

· Rain

· Snow

· Humidity

· Dust

· Chemicals

Jacket Durability

Outdoor jackets are significantly more robust to protect against environmental damage.

Indoor jackets prioritize flexibility and fire safety.

Installation Locations

Indoor cables are commonly installed in:

· Homes

· Offices

· Shopping malls

· Hospitals

· Schools

Outdoor cables are suitable for:

· Utility distribution

· Solar power systems

· Construction sites

· Underground installations

· Industrial plants

· Street lighting

Service Life

Properly selected outdoor cables generally maintain reliable performance for decades despite continuous environmental exposure.

Indoor cables achieve long service life when installed in protected locations.

Factors to Consider When Selecting an Electrical Wire Cable

Before choosing an Electrical Wire Cable, consider the following factors:

Installation Environment

Determine whether the cable will be exposed to:

· Direct sunlight

· Water

· Chemicals

· High humidity

· Extreme temperatures

Voltage Rating

Ensure the cable insulation matches the operating voltage of the electrical system.

Current Capacity

Select a conductor size capable of carrying the required electrical load safely without overheating.

Mechanical Requirements

Projects involving heavy equipment or underground installation may require stronger jacket materials.

Regulatory Compliance

Always select cables that comply with local electrical codes and applicable international standards.

Why Choose Biaobang Electrical Wire Cable?

Selecting a dependable cable manufacturer is essential for ensuring long-term performance and safety.

Biaobang manufactures premium Electrical Wire Cable solutions for residential, commercial, industrial, and infrastructure projects. Every cable is produced using carefully selected raw materials, advanced manufacturing technology, and rigorous quality control processes to ensure excellent electrical performance, superior durability, and compliance with international standards.

Whether your application requires indoor building wire, weather-resistant outdoor cables, industrial power cables, or customized cable solutions, Biaobang offers reliable products designed to perform in demanding environments.

Conclusion

Indoor and outdoor Electrical Wire Cable products may appear similar, but their insulation and jacket materials are specifically engineered for different operating conditions. Indoor cables focus on fire safety, flexibility, and efficient installation, while outdoor cables prioritize UV resistance, moisture protection, mechanical durability, and weather resistance.

By understanding these differences and carefully evaluating your installation environment, voltage requirements, and operating conditions, you can select the right cable for maximum safety, efficiency, and longevity. Partnering with an experienced manufacturer like Biaobang ensures you receive high-quality cable solutions that deliver dependable performance in every application.
