Key Factors to Evaluate When Selecting Electrical Wire Cable for Industrial Power Distribution

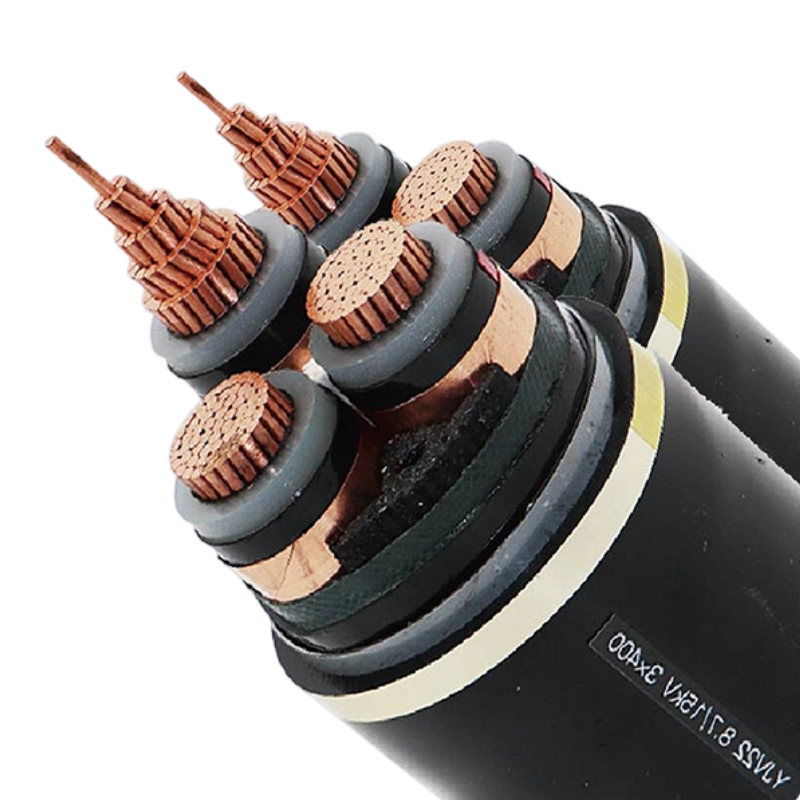

Selecting the right electrical wire cable for industrial power distribution is not a routine purchasing decision. A mismatch in conductor material, insulation rating, or voltage class can lead to downtime, fire hazards, or regulatory non-compliance. Engineers and procurement managers face a crowded market of suppliers, each claiming superior performance. This tutorial breaks down the seven critical factors you must evaluate, backed by industry standards and quantified data, to make a technically sound selection for your facility.
Key Takeaways
Conductor material choice (copper vs. aluminum) affects ampacity by roughly 40% for the same cross-section.
Insulation temperature rating (75°C, 90°C, or 105°C) determines maximum continuous current and safety margin.
Voltage rating must exceed system voltage by at least 25% per NEC guidelines for industrial circuits.
Armored or shielded constructions reduce electromagnetic interference by up to 60 dB in high-noise environments.
Environmental factors like UV exposure, chemical resistance, and moisture ingress dictate jacket material selection.
Compliance with IEC 60228, UL 1581, or BS EN 50525 is mandatory for most industrial installations.
Lifecycle cost analysis, not just purchase price, reveals true value over 20+ year service life.
What You Need Before Starting
Before you begin evaluating cable options, gather the following prerequisites:
System voltage and current ratings: Know the nominal voltage (e.g., 480V, 600V, 1000V) and maximum fault current your distribution system will handle.
Environmental conditions: Document ambient temperature range, humidity levels, presence of oils, solvents, or UV radiation at the installation site.
Cable routing details: Determine conduit type, tray configuration, burial depth (if direct-burial), and bend radius constraints.
Regulatory framework: Identify which standards apply — NEC (USA), IEC (international), or local codes — as they dictate minimum insulation thickness and testing protocols.
Budget and lifecycle expectations: Establish a target service life (typically 20–30 years for industrial cables) and total cost of ownership parameters.
For facilities handling bulk materials, ensure your cable runs avoid areas where calcium carbide granules are stored or processed, as these can generate acetylene gas in humid conditions, creating explosion risks that require specialized cable sealing.
Step 1 — Evaluate Conductor Material: Copper vs. Aluminum
What to Do
Compare ampacity tables for copper and aluminum conductors of identical cross-sectional area. For a 50 mm² conductor at 90°C insulation rating:
Copper: Approximately 230 A (ambient 30°C, three conductors in conduit)
Aluminum: Approximately 180 A (same conditions)
This 22% ampacity difference means you must upsize aluminum by one to two AWG sizes to match copper's current-carrying capacity.
Why This Matters
Copper offers lower resistivity (1.68 µΩ·cm vs. 2.65 µΩ·cm for aluminum at 20°C), translating to less voltage drop over long runs. For a 100-meter feeder carrying 200 A, copper cable drops about 3.2V, while aluminum drops 5.1V — a 60% increase. However, aluminum costs roughly 60% less per meter at equivalent ampacity, making it attractive for long, straight runs where voltage drop is manageable.
Common Mistakes to Avoid
Assuming aluminum requires no special termination: Aluminum oxidizes rapidly; use antioxidant compound and torque connections to manufacturer specs (typically 40–60 N·m for M10 bolts).
Mixing copper and aluminum without bi-metal connectors: Direct contact causes galvanic corrosion, increasing resistance by 15–25% within two years.
Ignoring creep relaxation: Aluminum terminals require re-torquing after 30 days of service per IEEE 835.
Step 2 — Verify Insulation Temperature Rating
What to Do
Select insulation class based on maximum conductor temperature under full load:
| Insulation Class | Max Continuous Temp | Typical Material | Common Applications |
|---|---|---|---|
| 75°C | 75°C (167°F) | PVC | General-purpose, dry locations |
| 90°C | 90°C (194°F) | XLPE, EPR | Industrial power, wet locations |
| 105°C | 105°C (221°F) | Silicone rubber | High-temp environments, ovens |
| 125°C+ | 125–250°C | PTFE, FEP | Specialized, high-heat zones |
Per NEC Table 310.15(B)(16), a 90°C-rated 4/0 AWG copper conductor carries 260 A, while the same conductor at 75°C is limited to 230 A — a 13% derating.
Why This Matters
Industrial environments often exceed 40°C ambient. For every 10°C above ambient, ampacity derates by roughly 5–8% per IEC 60364-5-52. A 90°C-rated cable in a 50°C motor room loses 15–20% capacity, meaning you must oversize or risk insulation degradation.
Common Mistakes to Avoid
Using 75°C cable in 90°C-rated breakers: The breaker's terminal rating governs; if terminals are rated 75°C, you cannot use the cable's 90°C ampacity.
Ignoring ambient temperature spikes: Short-term peaks (e.g., summer afternoons in unventilated switchrooms) can push conductor temps above rated limits, accelerating insulation aging by a factor of 2 per 10°C.
Step 3 — Match Voltage Rating to System Requirements
What to Do
Select cable voltage rating (U0/U) where U0 is conductor-to-earth voltage and U is conductor-to-conductor voltage. For a 480V system:
Minimum: 600V rated cable (U0/U = 0.6/1 kV)
Recommended: 1000V rated cable (U0/U = 0.6/1 kV or 1/1 kV) for safety margin
Per IEC 60502-1, cables for industrial distribution should withstand 3.5 kV test voltage for 5 minutes.
Why This Matters
A 600V cable on a 480V system provides 25% headroom. But if your system experiences transient overvoltages (common with motor starts or capacitor switching), spikes can reach 2–3 times nominal voltage. A 1000V-rated cable handles these without partial discharge, which degrades insulation over time.
Common Mistakes to Avoid
Using residential-grade 300V cable in industrial settings: These lack sufficient insulation thickness (typically 0.76 mm vs. 1.14 mm for 600V) and fail under fault conditions.
Ignoring DC voltage ratings: Solar or battery systems require cables rated for DC voltage, which is typically 1.5× the AC equivalent due to continuous stress.
Step 4 — Assess Shielding and Armor Requirements
What to Do
Determine if your installation needs electromagnetic shielding (foil or braid) or mechanical armor (steel wire or tape). For variable frequency drive (VFD) applications, use symmetrical three-conductor cables with 85% copper braid coverage to reduce radiated emissions by 40–60 dB per IEEE 1585.
Why This Matters
Unshielded cables in VFD installations act as antennas, emitting harmonics that disrupt nearby sensors and communication lines. Armored cables (SWA or STA per BS 5467) withstand crushing forces up to 5 kN and rodent damage, critical in underground or tray installations.
Common Mistakes to Avoid
Using unshielded cable for VFDs longer than 15 meters: Motor bearing currents increase, reducing bearing life by 50–70%.
Grounding shield at both ends: This creates ground loops; terminate shield at drive end only per manufacturer instructions.
Step 5 — Evaluate Jacket Material for Environmental Resistance
What to Do
Match jacket material to environmental exposure:
| Jacket Material | Temperature Range | Chemical Resistance | UV Resistance | Cost Index |
|---|---|---|---|---|
| PVC | -25°C to 105°C | Fair (oils, acids) | Poor | 1.0 |
| CPE | -40°C to 105°C | Good (oils, solvents) | Good | 1.3 |
| TPE | -50°C to 125°C | Excellent (hydrocarbons) | Excellent | 1.8 |
| LSZH | -20°C to 90°C | Fair | Good | 2.1 |
LSZH (Low Smoke Zero Halogen) jackets emit less than 0.5% halogen gas during combustion per IEC 60754-1, critical for enclosed spaces.
Why This Matters
In chemical plants, PVC jackets swell and crack within 6 months when exposed to aromatic hydrocarbons. A TPE jacket lasts 10+ years under the same conditions. UV-stabilized jackets (carbon black content ≥ 2.5%) resist degradation for 25+ years outdoors per ASTM D2565.
Common Mistakes to Avoid
Using standard PVC in direct sunlight: UV degradation reduces tensile strength by 50% within 3 years.
Ignoring cold-bend requirements: PVC becomes brittle below -25°C; use CPE or TPE for outdoor installations in cold climates.
Step 6 — Verify Compliance with Applicable Standards
What to Do
Check that the cable meets at least one of these standards:
IEC 60228: Conductors — specifies stranding classes (1, 2, 5, 6) and resistance tolerances (±2% for Class 2)
UL 1581: Reference standard for electrical wires — covers flame test (VW-1), insulation thickness, and aging
BS EN 50525: European standard for low-voltage power cables — includes fire performance (class B2ca, Cca, Dca)
IEEE 1202: Flame propagation test for cables in trays — requires 2.1 m flame spread maximum
Why This Matters
Non-compliant cables fail inspection, void insurance, and create liability. A UL-listed cable has undergone third-party testing for flame propagation (FT4/IEEE 1202) and passes a 70,000 BTU/hr flame for 20 minutes without propagating fire.
Common Mistakes to Avoid
Accepting "UL-listed" without verification: Counterfeit UL marks exist; verify on UL's Product iQ database.
Assuming CE marking equals compliance: CE is self-declared; always request test reports from accredited labs (e.g., TÜV, SGS).
Step 7 — Perform Lifecycle Cost Analysis
What to Do
Calculate total cost over 20 years using:
Purchase price per meter
Installation cost (labor, connectors, supports)
Energy losses (I²R × hours × electricity rate)
Maintenance and replacement frequency
For a 100-meter, 200 A feeder:
| Cable Type | Purchase Price | Annual Energy Loss | 20-Year Total |
|---|---|---|---|
| Copper, 90°C | $45/m | $320 | $4,900 + $6,400 = $11,300 |
| Aluminum, 90°C | $28/m | $510 | $2,800 + $10,200 = $13,000 |
Copper saves $1,700 over 20 years despite higher upfront cost.
Why This Matters
Energy losses account for 50–70% of total cost in continuous-load applications. A 1% increase in conductor resistance adds $200–500 annually per 100 meters at $0.10/kWh.
Common Mistakes to Avoid
Choosing cheapest upfront option: Aluminum's lower purchase price is offset by higher energy losses and shorter lifespan in corrosive environments.
Ignoring installation labor: Larger aluminum cables require heavier pulling equipment and more labor hours.
Pro Tips for Success
Always oversize by one AWG for future expansion: Adding 25% capacity now costs 15% more but avoids full replacement later.
Use torque wrenches on all connections: Under-torquing by 20% increases resistance by 30% and causes thermal runaway.
Document cable pulling tension: Exceeding 25% of rated tensile strength damages conductor strands; use a dynamometer.
Specify cables with sequential length markings: This simplifies inventory management and troubleshooting.
Request factory test certificates: For critical feeders, require partial discharge test results (< 5 pC at 2× rated voltage per IEC 60270).
Frequently Asked Questions
What is the difference between THHN and XHHW cable?
THHN (Thermoplastic High Heat-resistant Nylon) is rated 90°C dry/75°C wet, while XHHW (Cross-linked High Heat-resistant Water-resistant) is rated 90°C dry/90°C wet. XHHW uses cross-linked polyethylene insulation, offering better moisture resistance and higher ampacity in wet locations.
Can I use aluminum cable for main feeders in industrial plants?
Yes, but with precautions. Aluminum requires larger conduit (one to two sizes up), antioxidant compound on connections, and re-torquing after 30 days. It is cost-effective for long, straight runs but not recommended for short, high-ampacity feeders due to termination challenges.
How often should industrial cables be tested?
Per NFPA 70B, perform insulation resistance testing (megger test) annually at 1000V for 1 minute. Acceptable values exceed 100 MΩ for circuits under 600V. For critical feeders, conduct partial discharge testing every 3–5 years.
Conclusion
Selecting electrical wire cable for industrial power distribution requires evaluating seven key factors: conductor material, insulation temperature rating, voltage rating, shielding/armor, jacket material, standards compliance, and lifecycle cost. Each factor carries quantified implications — a 10°C ambient rise derates ampacity by 8%, copper saves $1,700 over aluminum in a 20-year analysis, and proper shielding reduces EMI by 60 dB. Start by documenting your system parameters, then methodically compare cable specifications against these criteria. For facilities handling reactive materials like calcium carbide granules, prioritize cables with gas-tight seals and explosion-proof fittings. Finally, request third-party test reports and maintain a 25% voltage safety margin to ensure reliable, code-compliant power distribution for decades.
